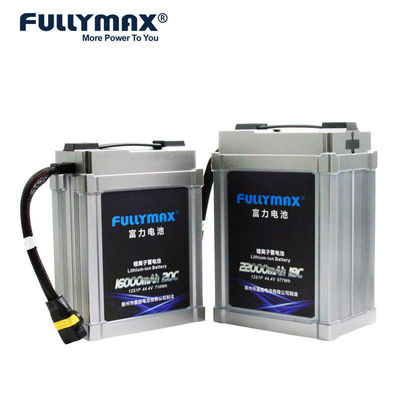

適用 李イオンUAVの無人機電池のパック10000mah 20000mah 12000mAh 16000mAh 30000mAh
李イオンUAVの無人機電池のパック10000mah 20000mah 12000mAh 16000mAh 30000mAh

李イオンUAVの無人機電池のパック10000mah 20000mah 12000mAh 16000mAh 30000mAh

無人機電池10000mah

,

無人機電池20000mah

,

無人機電池のパック

今雑談しなさい
サービス ホットライン:
0752-2322511
High Rate Discharge Li-Po Battery

Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

Industry-leading high temperature & high power discharging capability
Outstanding gravimetric Energy density: max 280Wh/kg
Low IR, low temperature rising, low self-discharging
Longer cycle life:1C ≥1000 cycles , 100% DOD
Good consistency, stable performance
LCO(4.2V/4.35V/4.4V/4.45V),LFP and NCM ,Flexible customized solution
製品詳細
起源の場所:
中国
ブランド名:
FULLYMAX
ユーザー定義の属性
ハイライト:

無人機電池10000mah

,

無人機電池20000mah

,

無人機電池のパック

商業UAVの無人機電池のパック



李イオンUAVの無人機電池のパック10000mah 20000mah 12000mAh 16000mAh 30000mAh 0

標準機能:

  • 最高5C速い充満

  • 280Wh/kgまでの高エネルギー密度、

  • 1000+周期までの長いサイクル寿命、

  • 利用できるLCO 4.2V/4.35V/4.4V/4.45VおよびNCM 4.2V/4.35Vのようないろいろ化学式

  • 低いおよび高温の正常な屋外操作のための高度電池の管理システムそして優秀な電池細胞の性能

  • 利用できるRS485/CANコミュニケーション

  • スマート、使用すること容易安全

  • 独立したR & D、適用範囲が広いおよび信頼できる技術援助のカスタム化のための専門およびベテランの技術的なチーム。



部分積モデル:

李イオンUAVの無人機電池のパック10000mah 20000mah 12000mAh 16000mAh 30000mAh 1



部分積モデル:

モデルいいえ。 最高cont。排出 重量 次元
8000mAh 3.92V 1cell 12C 126.0g 7.7x60x130mm
20000mAh 3.92V 1cell 12C 315.0g 8.5x90x190mm
30000mAh 3.92V 1cell 5C 460.5g 11x98x198mm
4900mAh 3.8V 1cell 10C 85.4g 7.2x43.5x131.5mm
5200mAh 3.85V 1cell 12C 85.9g 5.35x60x130mm
3300mAh 3.8V 1cell 15C 61.0g 8.6x40.8x82.5mm
3700mAh 3.8V 1cell 20C 73.5g 6.1x45x130.5mm
4900mAh 3.8V 1cell 20C 98.5g 7.8x45x130mm
8200mAh 3.8V 1cell 20C 159.4g 6.65x64.5x169.5mm
10000mAh 22.2V 6cells 25C 1,355.0g 53.0x66.5x199mm
12000mAh 22.2V 6cells 25C 1,585.0g 64x72x180.5mm
16000mAh 22.2V 6cells 20C 1,950.0g 73x76x182.5mm
22000mAh 22.2V 6cells 18C 2,570.0g 68.0x97.5x201.5mm
27000mAh 22.2V 6cells 15C 3,050.0g 69.5x99.5x224mm
12000mAh 44.4V 12cells
(電圧表示版)
25C 3,520.0g 76.5x150.5x211mm
16000mAh 44.4V 12cells
 (コミュニケーション版)
20C 4,350.0g 87.3x161.8x217.7mm
22000mAh 44.4V 12cells
(コミュニケーション版)
18C 6,250.0g 110.8x161.8x237.7mm
30000mAh 47.04V 12cells
(コミュニケーション版)
5C 7,800.0g 110.8x161.8x245.7mm





適用:

農業の噴霧の分野のQuadcopter/Multicopterの無人機/固定翼UAVので広く利用された無人機、貨物配達、軍隊、警察、調査および地図を描くこと、工学及び構造、鉱山、環境モニタリング、空中写真、電気航空機(eVTOL)、等。
